Pileds LED Light Co.,Limited. / Shenzhen Yishuguang Light Co., Ltd. was established in 2015. It is an enterprise specializing in the research and development, production, sales and after-sales
3 Years
| Ask Lasest Price | |
| Brand Name : | PILEDS |
| Model Number : | dmx to spi TTL decoder |
| Certification : | CE ROSH BIS |
| Price : | USD30 |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300+PCS+DAY |
| Delivery Time : | 5 |

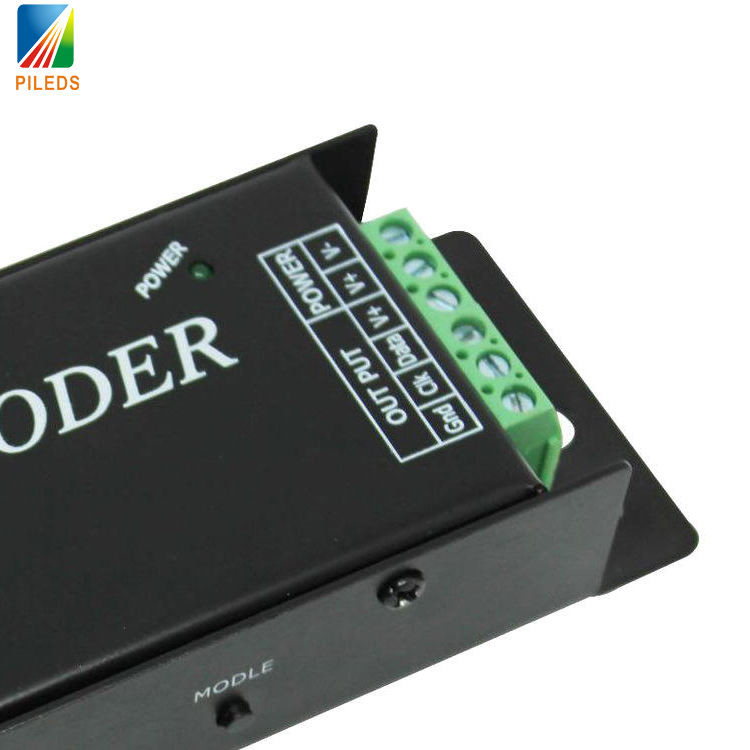

Easy DIY DC5~24v Dmx To Spi TTL Decoder For Rgb Led Strip Controller Output SPI Signal Dmx Decoder
The DMX LED Controller is an ARTNET 8-port sub control LED controller connected to the main control panel, which allows users to control LED lighting systems. It is capable of producing up to 9A of maximum output power and offers a wide range of control modes, including master-slave mode and DMX-SPI. It is also designed to work in a wide range of temperatures, from -20℃ to 60℃, making it suitable for both indoor and outdoor use. With its wide range of features, the DMX LED Controller is the ideal device for controlling and managing LED lighting systems.
easy DIY DC5~24v dmx to spi decoder for rgb led strip controller
The DMX-SPI decoder adopts the advanced micro control unit.
it receives standard DMX-512 digital control signal that is widely used in the international
and transformes it into SPI signal to drive LED.
it supports 10 kinds of different model of lights.
at the same time the port of DMX signal has lighting protection measures;
you could connect the DMX decoder with DMX digital console to achieve dimming
or various changes in procedures.
Not connected with DMX console, you can choose select the built-in 35 kinds
of default patterns through the modle button, the default points is 512.
| Number | Model | Signal line |
| 1 | LPD6803 | DATA, CLK |
| 2 | TM1803 | DATA |
| 3 | TM1809 | DATA |
| 4 | TM1812 | DATA |
| 5 | UCS1903 | DATA |
| 6 | WS2811 | DATA |
| 7 | WS2801 | DATA, CLK |
| 8 | TLS3001 | DATA |
| 9 | TLS3008 | DATA |
| 10 | P9813 | DATA, CLK |
Working temperature: -20-60 ℃
Input voltage: DC5-24V
Output: SPI signal (DATA, CLK)
External dimension: L175 x W53 x H27(mm)
Packing size: L180 x W58 x H55(mm)
Net weight: 256.2g
Gross weight: 292.6g
Max output:480W
| Product Attribute | Value |
|---|---|
| Product Size | L200*W50*H30mm |
| Control Distance | ≤100m |
| Protection Level | IP20 |
| Output Channels | DMX-SPI |
| Product Name | LED Decoder |
| Control Mode | Master-Slave |
| Input Voltage | DC12-24V |
| Weight | 0.5KG |
| DMX Connector | 4 Pin |
| Warranty | 2 Years |
| ARTNET | 8-port Sub Control LED Controller Connected to the Main |
The PILEDS dmx to spi TTL decoder is a professional LED controller designed to control and manage the lightings in a variety of environments. This LED decoder offers a Master-Slave Control Mode and up to eight ports of ARTNET sub-controls, making it perfect for controlling and managing large lightings projects. It has a lightweight design, with a weight of only 0.5KG, and can output up to 9A of Max Output Power. The LED Decoder also offers a DMX-SPI output channel and is certified with CE ROSH BIS, ensuring its quality and reliability. With a minimum order quantity of only 1 and a price of only USD20, the PILEDS dmx to spi TTL decoder is the ideal choice for any lighting project.
Brand Name: PILEDS
Model Number: dmx to spi TTL decoder
Place of Origin: China
Certification: CE ROSH BIS
Minimum Order Quantity: 1
Price: USD20
Max Output Power: 9A
Input Voltage: DC12-24V
Protection Level: IP20
Warranty: 2 Years
Control Distance: ≤100m
The DMX LED Controller is a professional 8-port sub control LED controller connected to the main ARTNET controller. It has excellent features such as 9A max output power, DC12-24V input voltage, IP20 protection level, ≤100m control distance, and a 2-year warranty. It is certified with CE, ROSH and BIS and is available with a minimum order quantity of 1 at a price of USD 20.
DMX LED Controller Technical Support and Services
We provide comprehensive technical support and services for our DMX LED Controller products. Our technical support team is available to answer any questions and provide assistance with troubleshooting, installation, and setup.
We also provide technical documentation, user manuals, and software updates to ensure that our customers have access to the latest information and tools. Our team of experienced engineers is available to assist with any technical inquiries.
We offer comprehensive customer service and technical support for our products. Our team of experts is available to answer any questions or concerns that our customers may have about our products.
DMX LED Controller Packaging and Shipping
The DMX LED Controller should be packaged and shipped in a secure cardboard box.
The box should be large enough to accommodate the controller, any necessary accessories, and protective packaging materials.
The shipping box should be sealed securely with packaging tape.
The box should also be labeled with the recipient's name and address, the sender's name and address, and the weight of the package.
The package should be shipped via a reliable shipping carrier with tracking and delivery confirmation.
|
|
